Lost Wax Injections

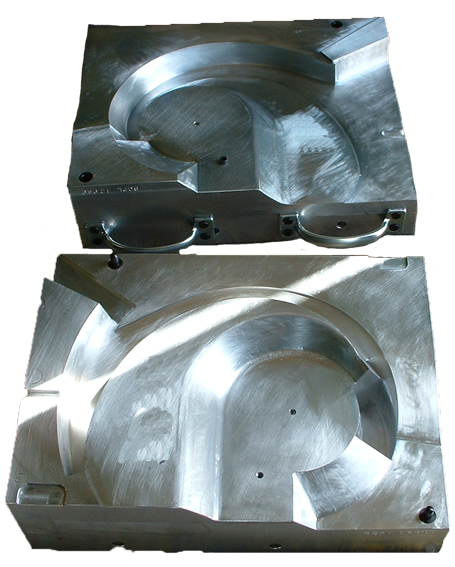

IMPELLER BLADE SOLUBLE WAX DIE

We have been designing and building lost wax injection dies for over 26 years.

Our dies are built for manual operation through fully automated tools using hydraulic or pneumatic pulls. Tools are designed for ease of use by the wax machine operator.

Wherever possible, we do not use screws to assemble pulls or die parts, preferring faster and easier methods for the operator. We can supply ceramic core dies as well as soluble core dies.

Tooling can be produced from data such as blue prints, CAD files, surface models and existing sample parts. Prototypes can be machined from solid wax or produced from low-cost epoxy, acrylic tooling, tooling foams, wood, plastic or from many more choices.
Tooling Samples

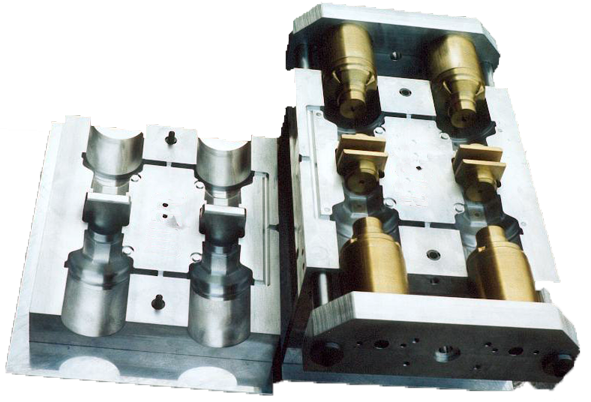

AUTOMATIC INVESTMENT LOST WAX DIE

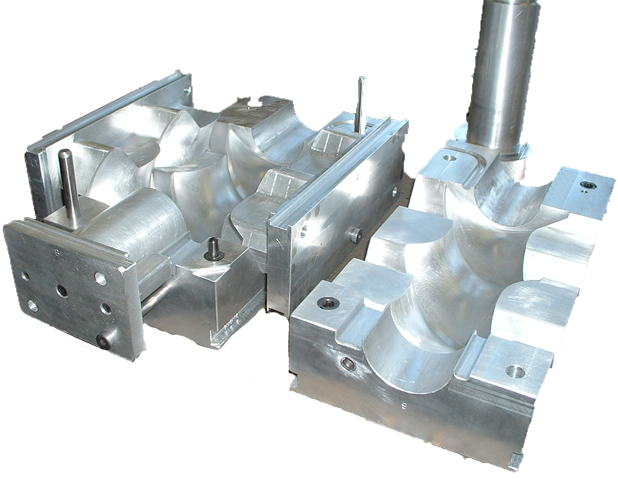

ALUMINUM  INVESTMENT LOST WAX DIE

ALUMINUM INVESTMENT LOST WAX DIE
Contact Us
Quotes are turned around in 1-2 days.
Contact us and we will be pleased to show you our facilities.

St. Catharines Pattern Limited
26 Export Ave.
St. Catharines, Ontario, Canada
L2M 7P2
Phone: 905-684-2111
Fax: 905-682-1481
EMAIL

St. Catharines Pattern Limited Map

Located in the heart of the Niagara region, we are close to major shipping routes. Just a short distance away from the Canada / U.S. border for ease of importing and exporting.
