Foundry Sand Tooling
Metal Pattern Equipment

We specialize in higher production equipment with fully machined aluminum and cast iron patters and core boxes.

Patterns:
  • Match Plates
  • Cope and Drag
  • DISA
  • Sinto
  • Hunter
  • B&P
  • Cast plates

Core boxes:
  • Shell cores
  • Isocure cores


Wood/Plastic Patterns
  • Loose Patterns
  • Match Plates
  • Cope and Drag Boxes
    • Hard Woods
    • Urethanes
    • Epoxies
    • Tooling Plastics
    • Foams









Tooling Samples
SAND COPE AND DRAG PLASTIC PATTERN

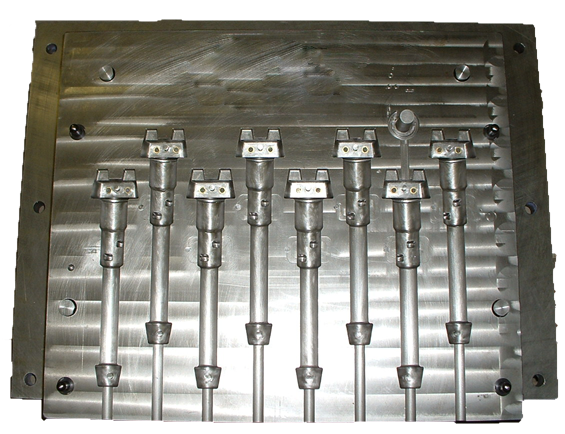

CAST IRON SHELL COREBOX

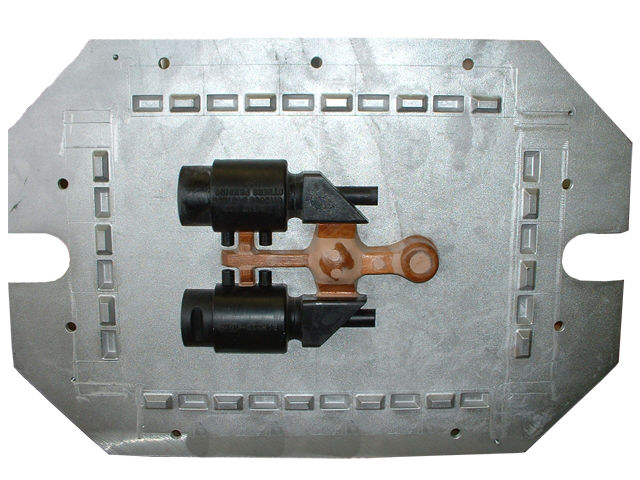

HUNTER 10 MATCHPLATE WITH PLASTIC PATTERNS
Contact Us
Quotes are turned around in 1-2 days.
Contact us and we will be pleased to show you our facilities.

St. Catharines Pattern Limited
26 Export Ave.
St. Catharines, Ontario, Canada
L2M 7P2
Phone: 905-684-2111
Fax: 905-682-1481
EMAIL

St. Catharines Pattern Limited Map

Located in the heart of the Niagara region, we are close to major shipping routes. Just a short distance away from the Canada / U.S. border for ease of importing and exporting.
